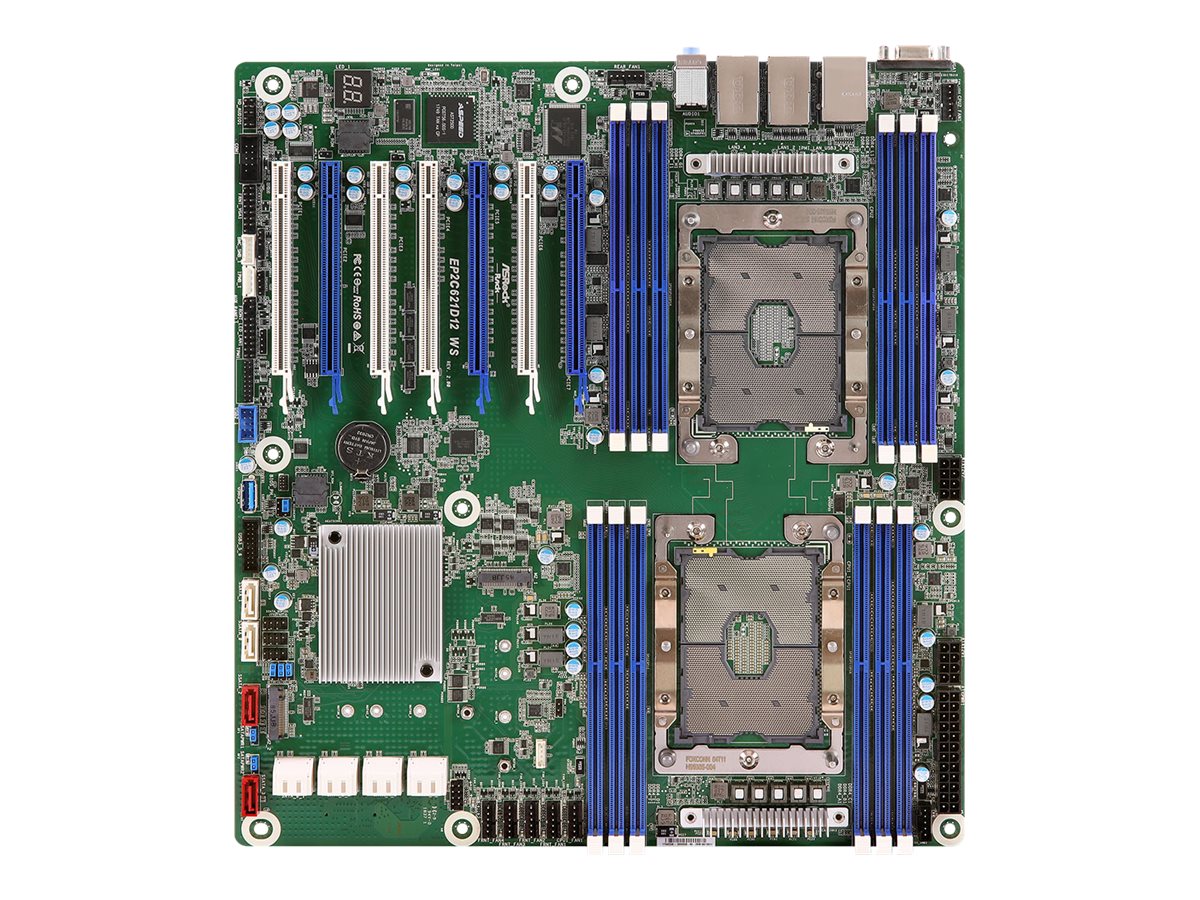

Motherboard - SSI EEB - Socket P - 2 CPUs supported - C621 Chipset - USB 3.1 Gen 1 - 4 x Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|
| Product Description | ASRock Rack EP2C621D12 WS - motherboard - SSI EEB - Socket P - C621 |
| Product Type | Motherboard - SSI EEB |
| Chipset Type | Intel C621 |
| Processor Socket | 2 x Socket P |
| Compatible Processors | Xeon |
| RAM Supported | 12 DIMM slots - DDR4 registered, Load-Reduced, Non-Volatile |
| Storage Ports | 14 x SATA-600, 2 x M.2 |
| USB / FireWire Ports | 2 x USB 3.1 Gen 1 + (2 x USB 3.1 Gen 1 + 2 x USB 2.0 via headers) |
| Graphics | ASPEED AST2500 |
| Dedicated Video Memory | 256 MB DDR4 SDRAM |
| LAN | 4 x Gigabit Ethernet |
| General | |
| Product Type | Motherboard - SSI EEB |
| Chipset Type | Intel C621 |
| Processor Socket | Socket P |
| Max Processors Qty | 2 |
| Compatible Processors | Xeon |
| Expansion / Connectivity | |
| Expansion Slots | 12 x DIMM 288-pin (1.2 V) ¦ 2 x CPU ¦ 4 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x8 ¦ 1 x PCIe 3.0 x16 (x16 mode (x8 mode if PCI Express 3.0 x8 slot is occupied)) |
| Storage Interfaces | SATA-600 -connectors: 14 x 7pin SATA ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |

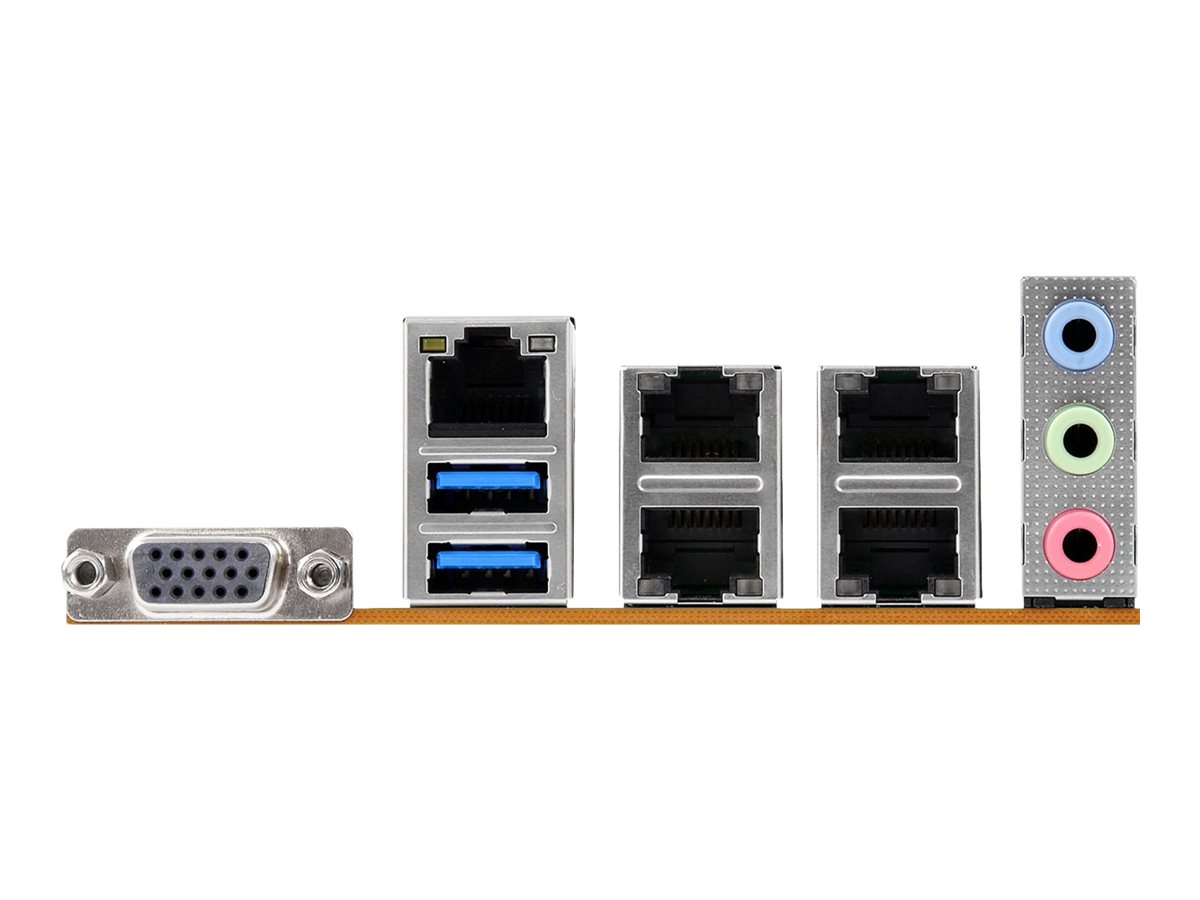

| Interfaces | 4 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x VGA ¦ 1 x management ¦ 2 x USB 3.1 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Width | 12 in |
| Depth | 13 in |
| Audio | |
| Audio Codec | Realtek ALC892 |
| Features | |
| BIOS Type | AMI |
| BIOS Features | ACPI 2.0 support, UEFI BIOS, SMBIOS 2.8 support, IPMI 2.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | WatchDog Timer, ASRock Instant Flash, Teaming Technology, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE) |
| LAN | |
| Network Controller | Marvell Alaska 88E1543 |
| Network Interfaces | 4 x Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| Dedicated Video Memory | 256 MB DDR4 SDRAM |
| Supported RAM | |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Registered or Buffered | Registered, Load-Reduced, Non-Volatile |
